Aluminium Profile Sections
Design Flexibility, Applications & Performance
What Are Aluminium Profile Sections
Aluminium profile sections represent the pinnacle of engineering adaptability in the metal industry. Unlike standard raw shapes, these profiles are meticulously engineered extrusions designed to fulfill both complex structural roles and specific functional requirements. Their modular nature allows for rapid assembly, highly customizable construction, and precision-based manufacturing. As industries move toward more agile and sustainable building methods, aluminium profile sections have become the go-to solution for engineers seeking a balance between lightweight design and heavy-duty performance.
Customizable Cross-Sections
The extrusion process allows for nearly infinite geometric possibilities, including internal webs, screw ports, and interlocking channels that are impossible to achieve with traditional machining
Seamless Compatibility
Designed for use with a vast ecosystem of connectors, fasteners, and accessories, these sections eliminate the need for permanent welding, allowing for easy modifications
Optimal Strength-to-Weight Ratio
Engineered internal structures allow these profiles to provide maximum load-bearing capacity while minimizing material volume, significantly reducing the overall weight of the final assembly
Aesthetic Versatility
With a clean, modern, and professional appearance, profile sections are frequently used in visible architectural and retail environments without needing additional cladding
Common Types of Aluminium Profile Sections
Aluminium profile sections is one of the most widely used metal forming processes in modern manufacturing. It allows aluminium to be shaped into complex, uniform cross-sections that combine structural strength, dimensional accuracy, and long-term durability. Because aluminium is lightweight, corrosion-resistant, and recyclable, extruded aluminium components are used extensively across construction, infrastructure, transportation, electrical systems, renewable energy, and industrial machinery.
Square & Rectangular Hollow Section
Angles, Channels, and T-Sections

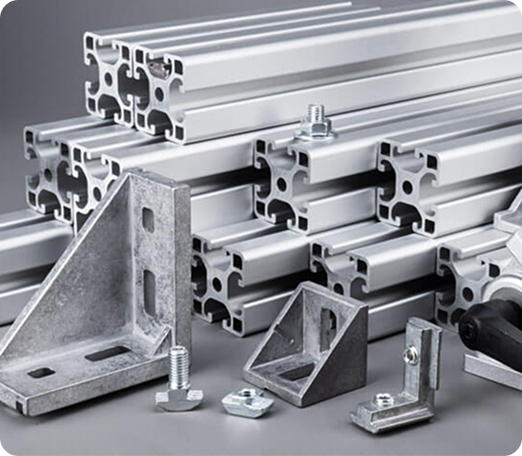

Modular Framing Sections
Architectural and Decorative Sections
Applications of Aluminium Sections
Modular Industrial Structures
Clean Room Frameworks
Solar Mounting Systems
Retail & Display
Equipment Housings & Enclosures

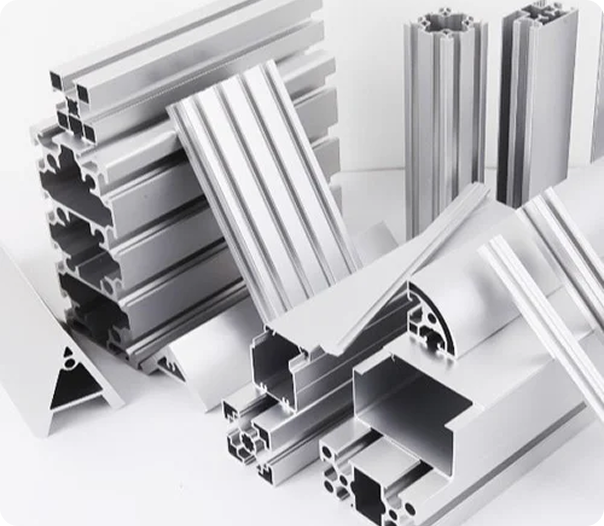

Manufacturing & Quality Considerations
Achieving high-performance profile sections requires a sophisticated manufacturing approach.
The accuracy of a profile is dictated by three critical factors
Die Design & Engineering
Creating precise tooling that accounts for metal flow and "spring-back" to ensure the final shape matches the CAD drawing.
Extrusion Control
Managing temperature and pressure during the press cycle to ensure uniform grain structure and mechanical properties throughout the length of the profile
Post-Processing & Finishing
Utilizing advanced straightening techniques and surface treatments like anodizing to meet strict tolerance levels and aesthetic requirements
High Strength-to-Weight Ratio
Natural Corrosion Resistance
Machinability and Assembly
Thermal & Electrical Conductivity
Sustainability & Infinite Recyclability
| T-Slot Profiles | V-Slot Profiles | |
|---|---|---|
|
Groove Shape |
Square-bottomed “T” shape |
Square-bottomed “V” shape |
|
Primary Use |
Heavy-duty structural framing, workstations, and machine bases. |
Linear motion applications (3D printers, CNC machines, camera sliders) |
|
Bearing Type |
Uses T-nuts and corner brackets for static joints. |
Designed for Delrin or steel V- wheels to roll inside the groove |
|
Strength |
Higher structural rigidity for heavy loads. |
Optimized for smooth, low-friction movement |
|
Complexity |
Industry standard; massive range of third-party accessories. |
Specialized; works best with V-wheel assemblies and motion kits |
Aluminium Section Industry in India
Aluminium Section Industry in India India has rapidly emerged as a global hub for aluminium section manufacturing, driven by massive infrastructure growth and a robust industrial sector. The industry benefits from an abundant domestic supply of high-grade aluminium and a sophisticated manufacturing ecosystem.
Modern extrusion facilities
Skilled technical workforce
Competitive production costs
Production Ecosystem
Growing export capabilities
About
Ratnashri

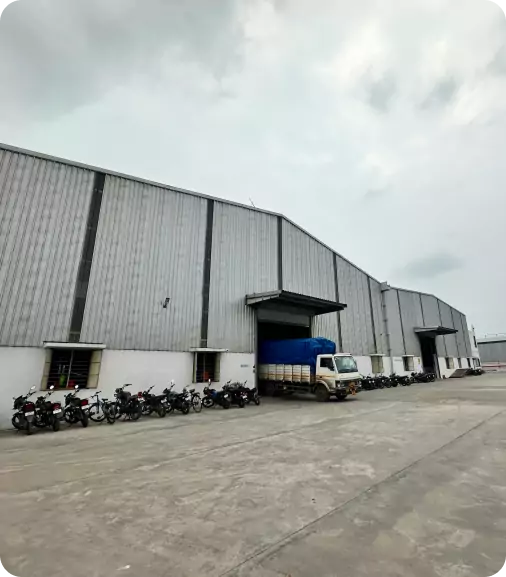

Ratnashri Aluminium is an ISO 9001:2015, ISO 14001:2015, and BIS certified manufacturer of aluminium extrusion products including solid and hollow profiles and sections, pipes, tubes, bars, rods, and billets. The company operates a modern manufacturing facility with imported machinery and in-house testing capabilities near Ahmedabad, supporting a wide range of industrial and architectural applications.
